Choosing a cap plate is easy, but important. The IRC (International Residential Code) states under R502.9 Fastening (Floors) “…Where posts and beams or girder construction is used to support floor framing, positive connections shall be provided to ensure against uplift and lateral displacement.” There are a few ways to get positive connection from beam and column that support floors. Note that all column top plates have to be attached to beams using the appropriate screws or bolts. The traditional way of welding a plate to the column in the field can be time consuming and costly. Or with the Lally Lock Column and Lally Lock Plates the plate simply screws into the embedded fastening unit on one end of the column. Then the plate is fastened to the beam creating the required connection between the column and beam.

Whether you are looking for a standard plate or a plate to saddle a beam, we have a size a to meet any beam configuration.

__Lally Lock Cap

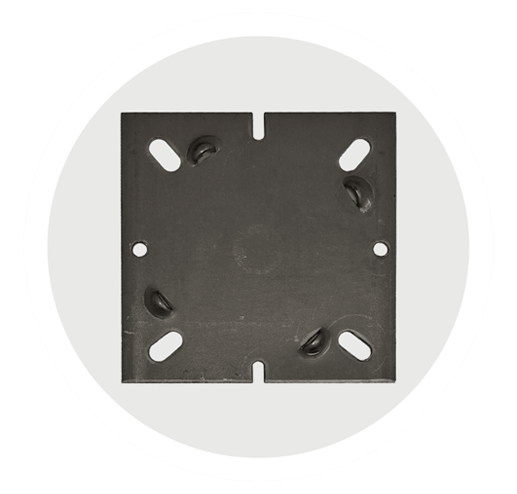

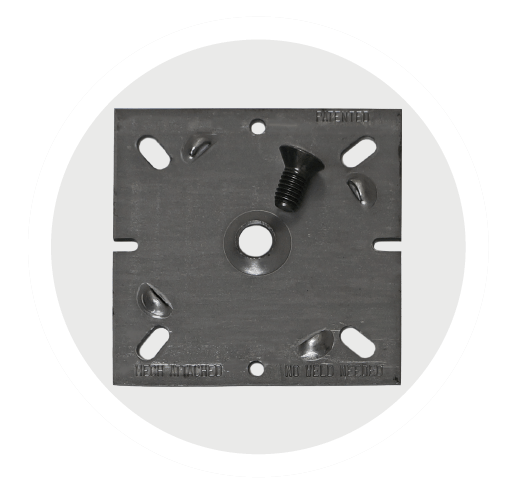

Lally Lock Cap Plate

This plate is made in low carbon steel in dimensions 5 3/8” x 5 3/8” x 1/8”. The plate has two 5/16” holes, two ¼” slotted holes, four 3/8” oval holes, and four raised lugs to fit outside dimension of the column. One 9/16” counter sink hole is center located to attach the column. One ½” hex head screw is included in the packaging (5/16” hex head bit not included).

*Can also be used on Adjustable Columns.

Code for 3.5" Lally Lock Column

B3508

Code for 4" Lally Lock Column

B4008

Lally-Lock-Springfield-Plate-517x494

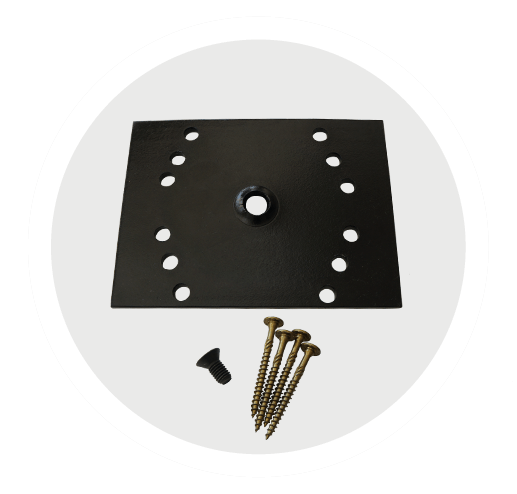

Lally Lock Springfield Plate
*NEW*

Now, with Lally Lock locking system, we are introducing the Lally Lock Springfield Plate for Lally Lock Columns. Same size, same thickness, and same hole configuration as the predecessor, the Springfield plate with ring, this plate has the Lally Lock center hole (instead of the ring) for attaching to any size Lally Lock Column. Once attached to a Lally Lock Column, this plate with the strategic hole placements means it can be used with any beam size. This is replacing multiple styles of the Lally Lock Beam plates down to one selection that serves the same function, and less confusion when ordering.

Code for Lally Lock Springfield Plate

BULL01

__Lally Lock Beam Plate

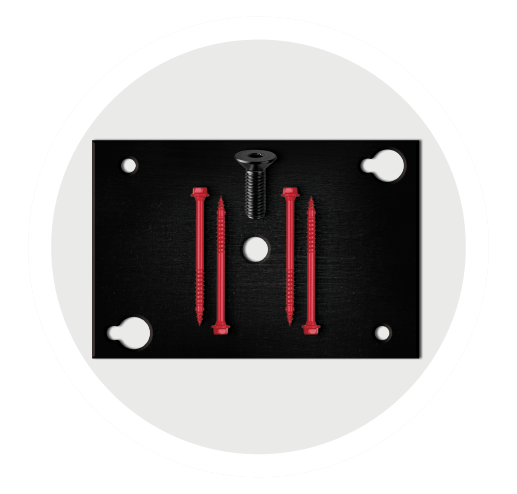

Lally Lock Beam Plate - Limited Availability

The Lally Lock Beam Plate is a great option for wider beams. It is 8” long and made from ¼” low carbon steel. The plate has either one keyhole or one 3/8” hole located in each corner and the plates are packaged with GRK screws. To accommodate any Lally Lock Column diameter, this plate has a 19/32” counter sunk hole in the center of the plate to accept a ½” bolt. This plate is offered in different widths for different beams.

Codes for 3.5" & 4" Lally Lock Column

3 1/8” for 2 2x’s – BULB01 Limited Stock
3 5/8” for 2 LVL – BULB02 Limited Stock
4 5/8” for 3 2x’s – BULB03 Limited Stock
5 3/8” for 3 LVL – BULB04 Limited Stock
6 1/8” for 4 2x’s – BULB05 Out of Stock
7 1/8” for 4 LVL – BULB06

Try our New Lally Lock Springfield Plate!

This plate has multiple hole configurations for any size beam. Just select the ring size to match your column diameter.

__Lally Lock Saddle Plate

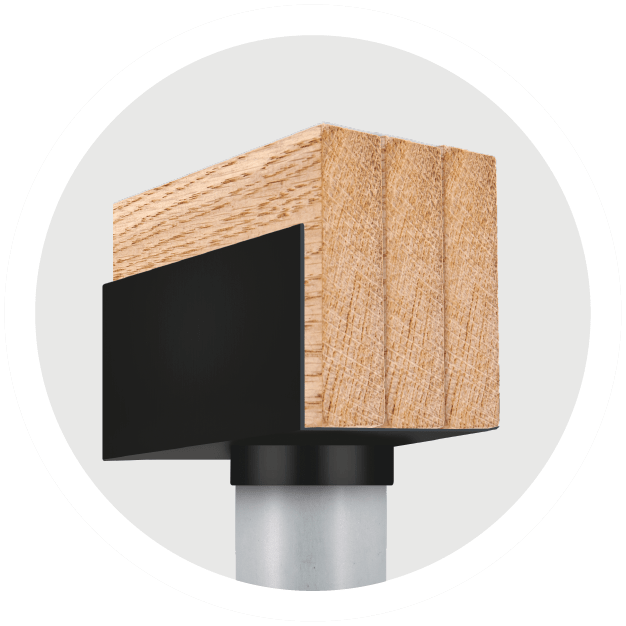

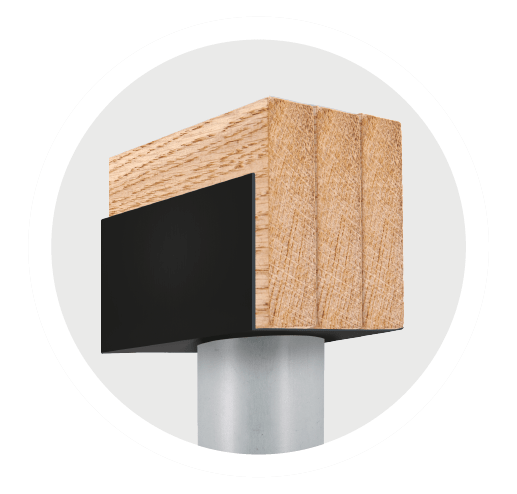

Lally Lock Saddle Plate

This plate is made from 12-gauge low-carbon steel to wrap the sides of a beam. From the inside of the saddle, the walls are 4” high and extend the length of 11 ½” long along the beam. Eight 3/16” holes are cut out of each side of the saddle for bolting the saddle to the beam. Located in the center of the bottom of the saddle is a specially designed-hole for a bolt to connect the plate to the column. It comes in different size saddles to fit different beams.

Codes for 3.5" & 4" Lally Lock Column

3 1/8” x 11 ½” for 2 2x’s – BULS01
3 5/8” x 11 ½” for 2 LVL – BULS02
4 5/8” x 11 1/2” for 3 2x’s – BULS03
5 3/8” x 11 ½” for 3 LVL – BULS04
6 1/8” x 11 ½” for 4 2x’s – BULS05
7 1/8” x 11 ½” for 4 LVL – BULS06

Springfield-Plate-With-Ring-517x494

Springfield Plate with Ring

This heavy-duty plate is 1/4” thick steel by 6” x 8” with a special hole pattern and a center ring. It’s the multi hole configuration allows for installation on any size beam, but the rings are made for either 3.5” or 4” diameter columns. This plate sits on the column but does not attach to the column unless it’s welded.

Codes for 3.5” Column

B0500003

Codes for 4” Column

B0500005

beam-plate-with-ring

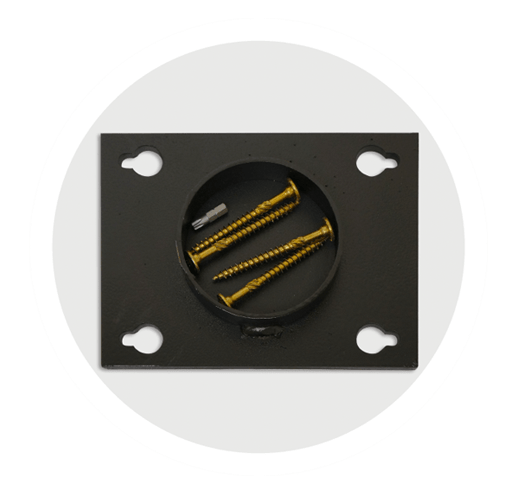

Beam Plate with Ring - Soon to be Discontinued

Similar to the Springfield plate. This plate has a welded ring that encompasses the top or base of a 3 ½” or 4” column. It is also similar to the lally lock beam plate as it has the same hole configurations. However, this plate has to be welded to the column. It comes in different size plates to fit different beams.

Codes for 3.5" Column

3 1/8” x 8” x ¼” for 2 2x’s – B3510 Limited Stock
3 5/8” x 8” x ¼” for 2 LVL – B3512 Limited Stock
4 5/8” x 8” x ¼” for 3 2x’s – B3514 Limited Stock
5 3/8” x 8” x ¼” for 3 LVL – B3516 Out of Stock
6 1/8” x 8” x ¼” for 4 2x’s – B3518 Out of Stock
7 1/8” x 8” x ¼” for 4 LVL – B3520 Limited Stock

Try Our Springfield Plate with Ring!

Codes for 4" Column

3 1/8” x 8” x ¼” for 2 2x’s – B4010 Limited Stock
3 5/8” x 8” x ¼” for 2 LVL – B4012 Out of Stock
4 5/8” x 8” x ¼” for 3 2x’s – B4014 Out of Stock
5 3/8” x 8” x ¼” for 3 LVL – B4016 Out of Stock
6 1/8” x 8” x ¼” for 4 2x’s – B4018 Out of Stock
7 1/8” x 8” x ¼” for 4 LVL – B4020 Out of Stock

cap-and-base-set

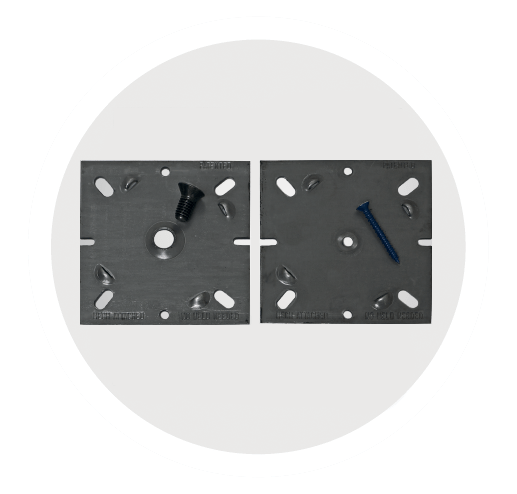

Lally Lock Cap & Base Set

The cap and base set consists of 1 Lally Lock Cap Plate and 1 Lally Lock Base Plate for convenience. For more details, please see the Lally Lock Cap Plate description here, and the Lally Lock Base Plate description above.

Codes for 3.5" Lally Lock Column

B3506

Codes for 4" Lally Lock Column

B4006

Structural Lock System Components

Structural
Lock System

Originally, our patented Lock System was designed for our concrete filled and hollow adjustable lally columns.

More Info

Lally
Lock Column

Our patented Lally Lock columns are concrete-filled and are available in 3 1/2″ or 4″ outside diameter.

More Info

Cap
Plates

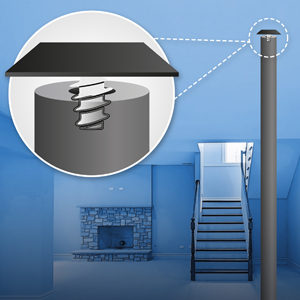

Our system allows users to simply screw in any of our cap plates into a 6″ threaded rod.

More Info

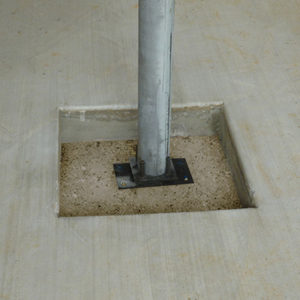

Base
